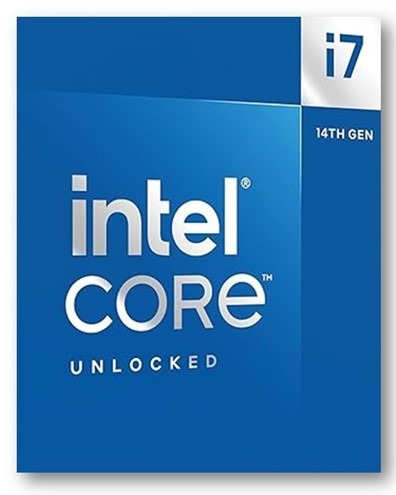

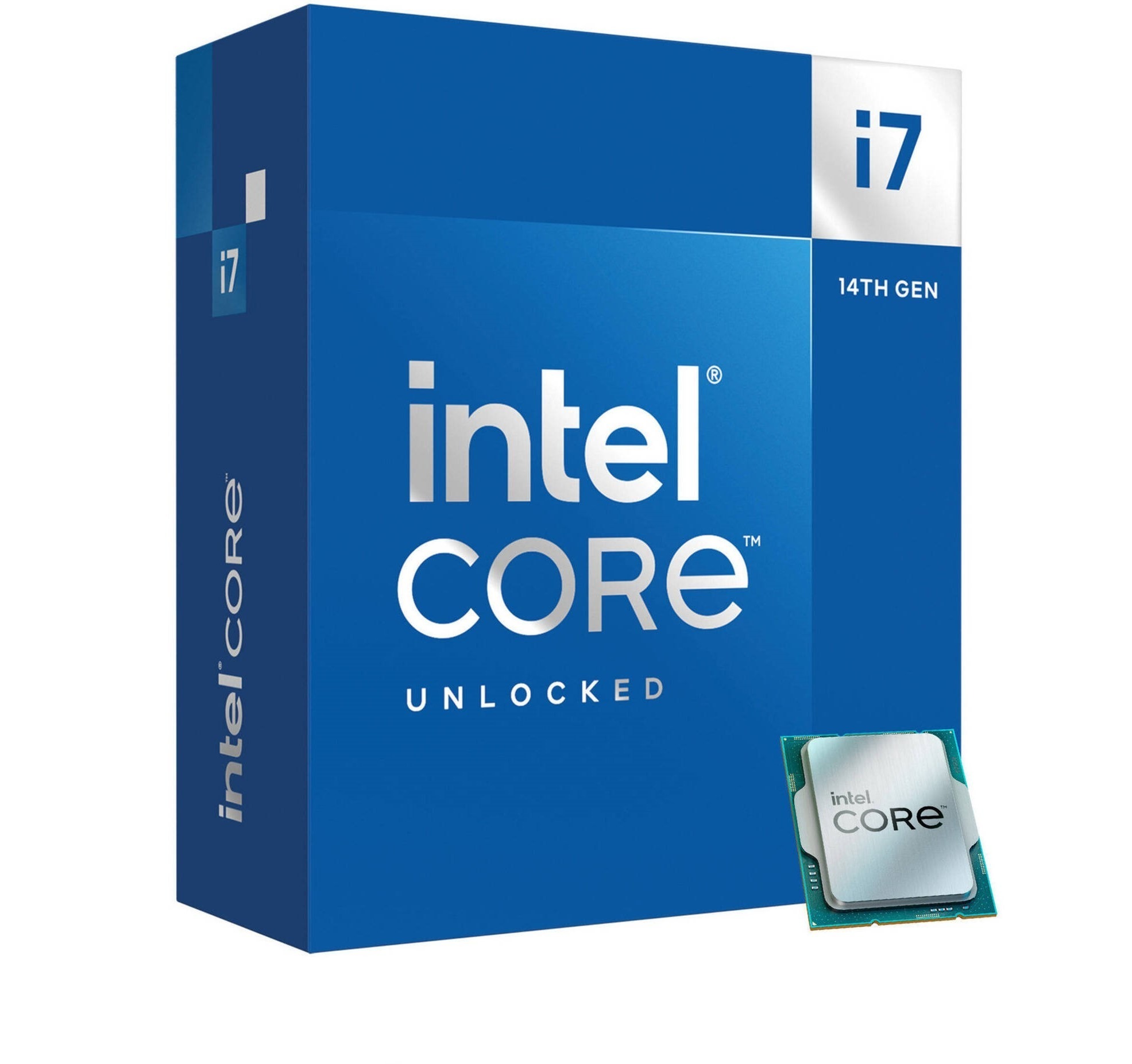

Intel Core i7 processor 14700K 33M Cache, up to 5.60 GHz


Intel Core i7-14700K 14th Gen Processor

  • Warranty: 3 Years
  • Socket: LGA 1700
  • Integrated Graphics: Yes, Intel UHD Graphics 770
  • Cooling: No, a separate cooler is required
  • Memory Support: DDR4 and DDR5 RAM
  • UNLOCKED: YES

Note: *** Features, Prices, and Specifications are subject to change without notice.

Compare

Highlights



Brand Intel
Model i7-14700K
Cores 20 Cores (8 Performance Cores + 12 Efficiency Cores)
Threads 28 Threads
Base Frequency 3.40 GHz
Max Turbo Frequency 5.60 GHz



#Essentials

#Model #i7-14700K
#Product Collection #Intel® Core™ i7 Processor (14th gen)
#Code Name #Products formerly RAPTOR LAKE
#Vertical Segment #Desktop
#Lithography #Intel 7
#Use Conditions #PC/Client/Tablet, Workstation

#CPU Specifications

#Total Cores #20
#of Performance-cores #8
#of Efficient-cores #12
#Total Threads #28
#Max Turbo Frequency #5.6 GHz
#Intel® Turbo Boost Max Technology 3.0 Frequency #5.6 GHz
#Performance-core Max Turbo Frequency #5.5 GHz
#Efficient-core Max Turbo Frequency #4.3 GHz
#Performance-core Base Frequency #3.4 GHz
#Efficient-core Base Frequency #2.5 GHz
#Cache #33 MB Intel® Smart Cache
#Total L2 Cache #28 MB
#Processor Base Power #125 W
#Maximum Turbo Power #253 W

#Supplemental Information

#Marketing Status #Launched
#Launch Date #Q4’23
#Embedded Options Available #No

#Memory Specifications

#Max Memory Size (dependent on memory type) #192 GB
#Memory Types #Up to DDR5 5600 MT/s & Up to DDR4 3200 MT/s
#Max – of Memory Channels #2
#Max Memory Bandwidth #89.6 GB/s
#ECC Memory Supported  #Yes

#GPU Specifications

#Processor Graphics #Intel® UHD Graphics 770
#Graphics Base Frequency #300 GHz
#Graphics Max Dynamic Frequency #1.6 GHz
#Graphics Output #eDP 1.4b, DP 1.4a, HDMI 2.1
#Execution Units #32
#Max Resolution (HDMI) #4096 x 2160 @ 60Hz
#Max Resolution (DP) #7680 x 4320 @ 60Hz
#Max Resolution (eDP – Integrated Flat Panel) #5120 x 3200 @ 120Hz
#DirectX* Support #12
#OpenGL* Support #4.5
#OpenCL* Support #3.0
#Multi-Format Codec Engines #2
#Intel® Quick Sync Video #Yes
#Intel® Clear Video HD Technology #Yes
#Device ID #0xA780

#Expansion Options

#Direct Media Interface (DMI) Revision #4.0
#Max – of DMI Lanes #8
#Scalability #1S Only
#PCI Express Revision #5.0 and 4.0
#PCI Express Configurations #Up to 1×16+4, 2×8+4
#Max – of PCI Express Lanes #20

#Package Specifications

#Sockets Supported #FCLGA1700
#Max CPU Configuration #1
#Thermal Solution Specification #PCG 2020A
#TJUNCTION #100°C
#Package Size #5.0 mm x 37.5 mm

#Advanced Technologies

#Intel® Gaussian & Neural Accelerator #3.0
#Intel® Thread Director #Yes
#Intel® Deep Learning Boost (Intel® DL Boost) on CPU #Yes
#Intel® Speed Shift Technology #Yes
#Intel® Turbo Boost Max Technology 3.0  #Yes
#Intel® Turbo Boost Technology  #2.0
#Intel® Hyper-Threading Technology  #Yes
#Intel® 64 #Yes
#Instruction Set #64-bit
#Instruction Set Extensions #Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
#Idle States #Yes
#Enhanced Intel SpeedStep® Technology #Yes
#Thermal Monitoring Technologies #Yes
#Intel® Volume Management Device (VMD) #Yes

#Security & Reliability

#Intel® Standard Manageability (ISM)  #Yes
#Intel® Control-Flow Enforcement Technology #Yes
#Intel® AES New Instructions #Yes
#Secure Key #Yes
#Intel® OS Guard #Yes
#Execute Disable Bit #Yes
#Intel® Boot Guard #Yes
#Mode-based Execute Control (MBEC) #Yes
#Intel® Virtualization Technology (VT-x) #Yes
#Intel® Virtualization Technology for Directed I/O (VT-d) #Yes
#Intel® VT-x with Extended Page Tables (EPT) #Yes
#Warranty #3 Years
Note: *** Features, Prices, and Specifications are subject to change without notice.
