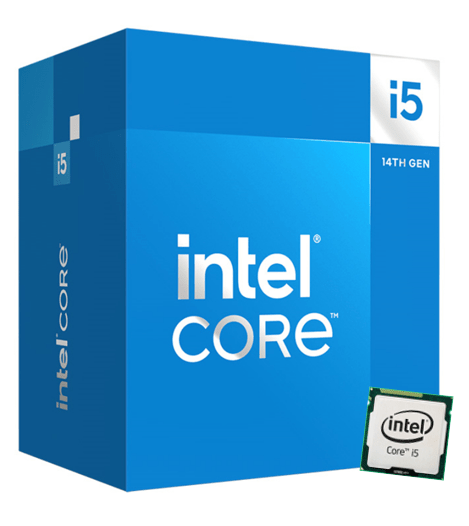

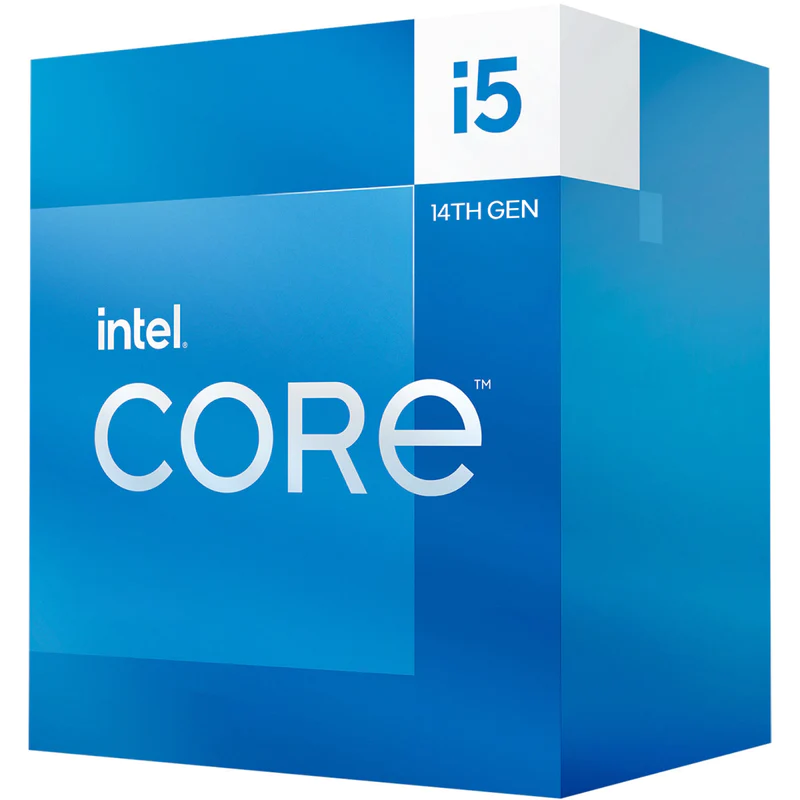

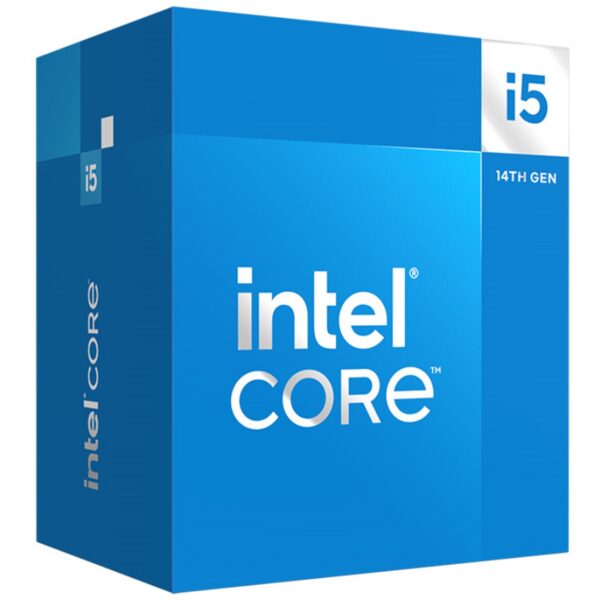

Intel Core i5-14500 Processor 24M Cache, up to 5.00 GHz


Intel Core i5-14500 14th Gen Processor

  • Warranty: 3 Years
  • Socket: LGA 1700
  • Integrated Graphics: Yes, Intel UHD Graphics 770
  • Cooling: Includes stock fan
  • Memory Support: DDR4 and DDR5 RAM

Note: *** Features, Prices, and Specifications are subject to change without notice.

Compare

Highlights



Brand Intel
Model i5-14500
Cores 14 Cores
Threads 20 Threads
Base Frequency 2.60 GHz
Max Turbo Frequency 5.00 GHz



#Essentials

#Model #i5-14500
#Product Collection #Intel® Core™ i5 Processor (14th gen)
#Code Name #Products formerly Raptor Lake
#Vertical Segment #Desktop
#Lithography #Intel 7
#Use Conditions #PC/Client/Tablet, Workstation

#CPU Specifications

#Total Cores #14
#of Performance-cores #6
#of Efficient-cores #8
#Total Threads #20
#Max Turbo Frequency #5 GHz
#Performance-core Max Turbo Frequency #5 GHz
#Efficient-core Max Turbo Frequency #3.7 GHz
#Performance-core Base Frequency #2.6 GHz
#Efficient-core Base Frequency #1.9 GHz
#Cache #24 MB Intel® Smart Cache
#Total L2 Cache #11.5 MB
#Processor Base Power #65 W
#Maximum Turbo Power #154 W

#Memory Specifications

#Max Memory Size (dependent on memory type) #192 GB
#Memory Types #Up to DDR5 4800 MT/s & Up to DDR4 3200 MT/s
#Max – of Memory Channels #2
#Max Memory Bandwidth #76.8 GB/s
#ECC Memory Supported #Yes

#GPU Specifications

#GPU Name #Intel® UHD Graphics 770
#Graphics Max Dynamic Frequency #1.55 GHz
#Graphics Output #eDP 1.4b, DP 1.4a, HDMI 2.1
#Execution Units #32
#Max Resolution (HDMI) #4096 x 2160 @ 60Hz
#Max Resolution (DP) #7680 x 4320 @ 60Hz
#Max Resolution (eDP – Integrated Flat Panel) #5120 x 3200 @ 120Hz
#DirectX* Support #12
#OpenGL* Support #4.5
#OpenCL* Support #3.0
#Multi-Format Codec Engines #2
#Intel® Quick Sync Video #Yes
#Intel® Clear Video HD Technology #Yes
#of Displays Supported #4
#Device ID #0x4680

#Expansion Options

#Direct Media Interface (DMI) Revision #4.0
#Max – of DMI Lanes #8
#Scalability #1S Only
#PCI Express Revision #5.0 and 4.0
#PCI Express Configurations #Up to 1×16+4, 2×8+4
#Max – of PCI Express Lanes #20

#Package Specifications

#Sockets Supported #FCLGA1700
#Max CPU Configuration #1
#Thermal Solution Specification #PCG 2020C
#TJUNCTION #100°C
#Package Size #45.0 mm x 37.5 mm

#Advanced Technologies

#Intel® Gaussian & Neural Accelerator #3.0
#Intel® Thread Director #Yes
#Intel® Deep Learning Boost (Intel® DL Boost) on CPU #Yes
#Intel® Speed Shift Technology #Yes
#Intel® Turbo Boost Technology #2.0
#Intel® Hyper-Threading Technology #Yes
#Intel® 64 #Yes
#Instruction Set #64-bit
#Instruction Set Extensions #Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
#Idle States #Yes
#Enhanced Intel SpeedStep® Technology #Yes
#Thermal Monitoring Technologies #Yes
#Intel® Volume Management Device (VMD) #Yes

#Security & Reliability

#Intel® Standard Manageability (ISM) #Yes
#Intel® Control-Flow Enforcement Technology #Yes
#Intel® AES New Instructions #Yes
#Secure Key #Yes
#Intel® OS Guard #Yes
#Execute Disable Bit  #Yes
#Intel® Boot Guard #Yes
#Mode-based Execute Control (MBEC) #Yes
#Intel® Virtualization Technology (VT-x) #Yes
#Intel® Virtualization Technology for Directed I/O (VT-d) #Yes
#Intel® VT-x with Extended Page Tables (EPT) #Yes
#Warranty #3 Years
Note: *** Features, Prices, and Specifications are subject to change without notice.
