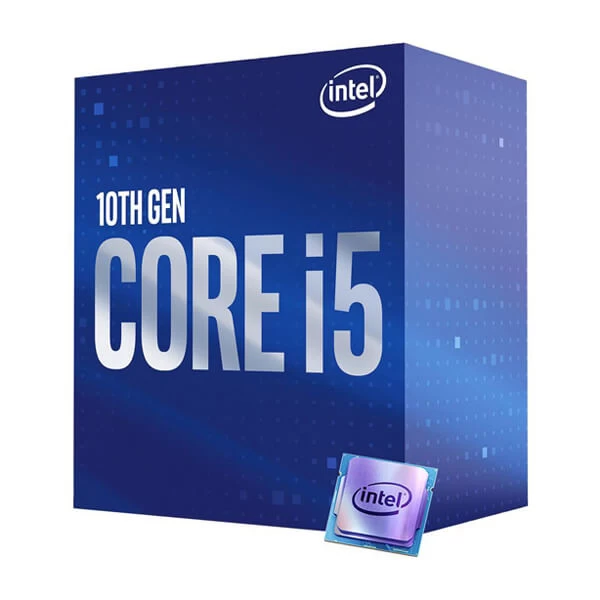

Intel Core i5-10400 Processor 12M Cache, up to 4.30 GHz


Intel Core i5-10400 10th Gen Processor

  • Warranty: 3 Years
  • Socket: LGA 1200
  • Integrated Graphics: Yes, Intel UHD Graphics 630
  • Cooling: Includes stock fan
  • Memory Support: DDR4 RAM

Note: *** Features, Prices, and Specifications are subject to change without notice.

Compare

Highlights



Brand Intel
Model i5-10400
Cores 6 Cores
Threads 12 Threads
Base Frequency 2.90 GHz
Max Turbo Frequency 4.30 GHz



#Essentials

#Product Collection #10th Generation Intel® Core™ i5 Processor
#Code Name #Products formerly Comet Lake
#Vertical Segment #Desktop
#Processor Number #i5-10400
#Lithography #14 nm
#Use Conditions #PC/Client/Tablet

#Performance Specifications

#Cores #6
#Threads #12
#Processor Base Frequency #2.90 GHz
#Max Turbo Frequency #4.30 GHz
#Cache #12 MB Intel® Smart Cache
#Bus Speed #8 GT/s
#Intel® Turbo Boost Technology 2.0 Frequency #4.30 GHz
#TDP #65 W

#Supplemental Information

#Embedded Options Available #No

#Memory Specifications

#Max Memory Size (dependent on memory type) #128 GB
#Memory Types  #DDR4-2666
#Max Memory Channels #2
#Max Memory Bandwidth #41.6 GB/s
#ECC Memory Supported #No

#Processor Graphics

#Processor Graphics #Intel® UHD Graphics 630
#Graphics Base Frequency #350 MHz
#Graphics Max Dynamic Frequency  #1.10 GHz
#Graphics Video Max Memory #64 GB
#4K Support  #Yes, at 60Hz
#Max Resolution (HDMI 1.4) #4096×2160@30Hz
#Max Resolution (DP) #4096×2304@60Hz
#Max Resolution (eDP – Integrated Flat Panel)  #4096×2304@60Hz
#DirectX Support #12
#OpenGL Support #4.5
#Intel® Quick Sync Video #Yes
#Intel® InTru™ 3D Technology #Yes
#Intel® Clear Video HD Technology #Yes
#Intel® Clear Video Technology #Yes
#Displays Supported #3
#Device ID #0x9BC8/0x9BC5

#Expansion Options

#Scalability #1S Only
#PCI Express Revision #3.0
#PCI Express Configurations #Up to 1×16, 2×8, 1×8+2×4
#Max PCI Express Lanes #16

#Advanced Technologies

#Intel® Optane™ Memory Supported #Yes
#Intel® Thermal Velocity Boost #No
#Intel® Turbo Boost Max Technology 3.0 #No
#Intel® Turbo Boost Technology #2.0
#Intel® vPro™ Platform Eligibility #No
#Intel® Hyper-Threading Technology #Yes
#Intel® Virtualization Technology (VT-x) #Yes
#Intel® Virtualization Technology for Directed I/O (VT-d) #Yes
#Intel® VT-x with Extended Page Tables (EPT) #Yes
#Intel® Transactional Synchronization Extensions #No
#Intel® 64 #Yes
#Instruction Set #64-bit
#Instruction Set Extensions #Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
#Idle States #Yes
#Enhanced Intel SpeedStep® Technology #Yes
#Thermal Monitoring Technologies #Yes
#Intel® Identity Protection Technology #Yes
#Intel® Stable Image Platform Program (SIPP) #No

#Security & Reliability

#Intel® AES New Instructions #Yes
#Secure Key #Yes
#Intel® Software Guard Extensions (Intel® SGX) #Yes with Intel® ME
#Intel® OS Guard #Yes
#Intel® Trusted Execution Technology #No
#Execute Disable Bit #Yes
#Intel® Boot Guard #Yes

#Package Specifications

#Sockets Supported #FCLGA1200
#Max CPU Configuration #1
#Thermal Solution Specification #PCG 2015C
#TJUNCTION #100°C
#Package Size #37.5mm x 37.5mm
#Warranty #3 Years
Note: *** Features, Prices, and Specifications are subject to change without notice.
