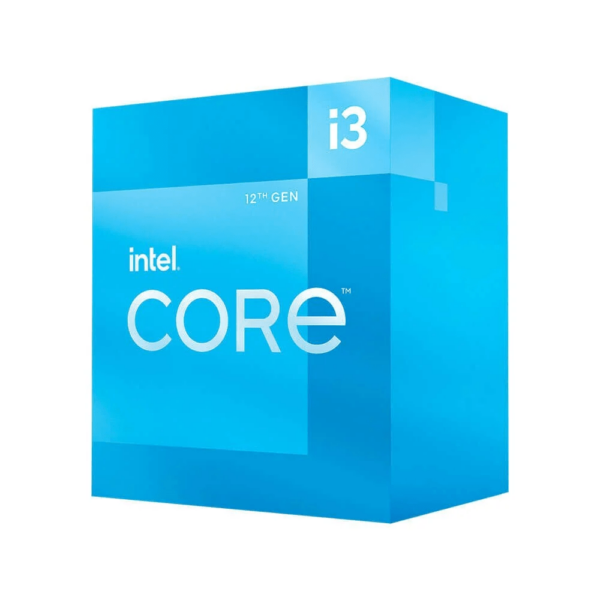

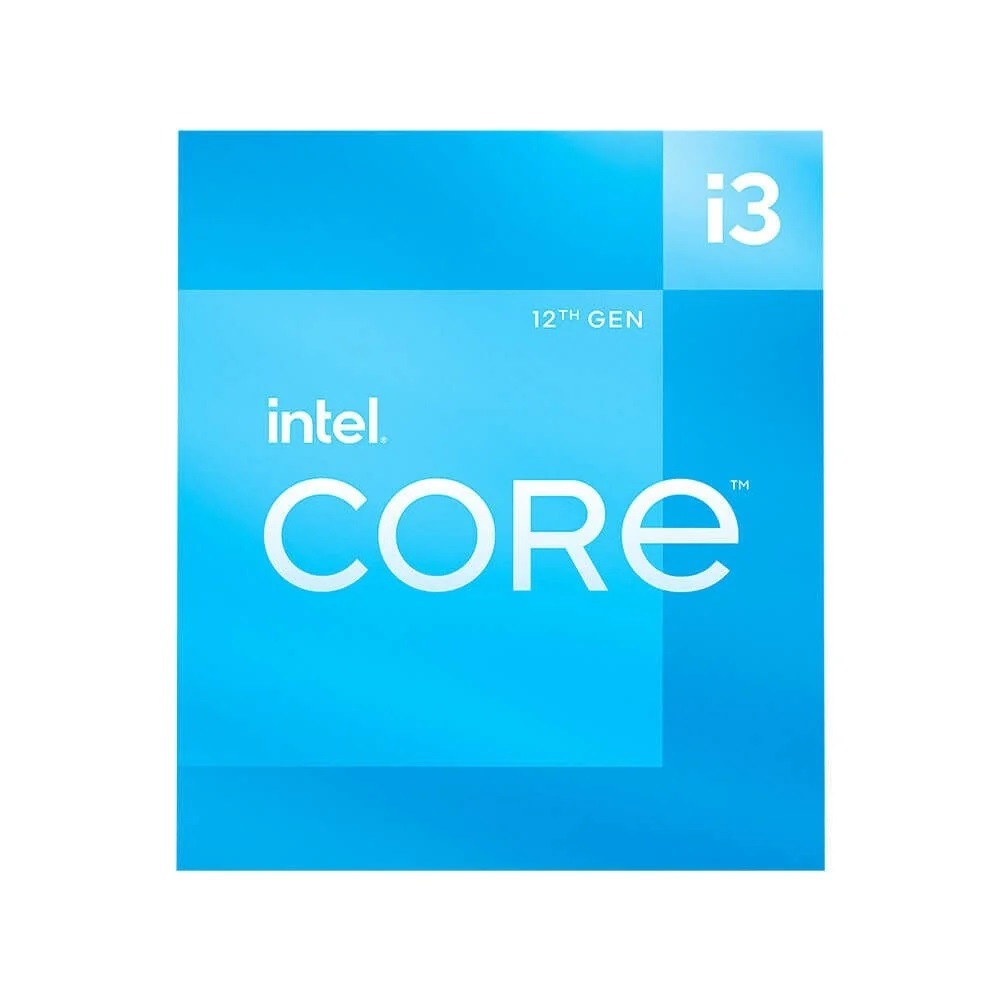

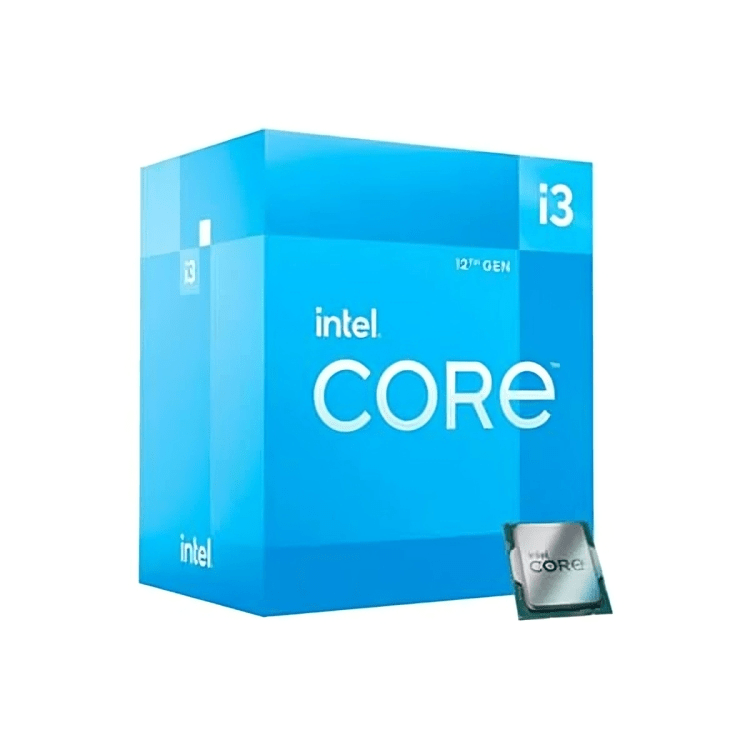

Intel Core i3-12100 Processor 12M Cache, up to 4.30 GHz


Intel Core i3-12100 12th Gen Processor

  • Warranty: 3 Years
  • Socket: LGA 1700
  • Integrated Graphics: Yes, Intel UHD Graphics 730
  • Cooling: Includes stock fan
  • Memory Support: DDR4 RAM

Note: *** Features, Prices, and Specifications are subject to change without notice.

Compare

Highlights



Brand Intel
Model i3-12100
Cores 4 Cores
Threads 8 Threads
Base Frequency 3.30 GHz
Max Turbo Frequency 4.30 GHz



#Essentials

#Product Collection #12th Generation Intel® Core™ i3 Processor
#Code Name #Products formerly Alder Lake
#Vertical Segment #Desktop
#Processor Number #i3-12100
#Lithography #Intel 7
#Use Conditions #PC/Client/Tablet

#CPU Specifications

#Total Cores #4
#of Performance-cores #4
#of Efficient-cores #0
#Total Threads #8
#Max Turbo Frequency #4.30 GHz
#Performance-core Max Turbo Frequency #4.30 GHz
#Performance-core Base Frequency #3.30 GHz
#Cache #12 MB Intel® Smart Cache
#Total L2 Cache #5 MB
#Processor Base Power #60 W
#Maximum Turbo Power #89 W

#Memory Specifications

#Max Memory Size (dependent on memory type) #128 GB
#Memory Types #Up to DDR5 4800 MT/s & Up to DDR4 3200 MT/s
#Max – of Memory Channels #2
#Max Memory Bandwidth #76.8 GB/s

#Processor Graphics

#Processor Graphics #Intel® UHD Graphics 730
#Graphics Base Frequency #300 MHz
#Graphics Max Dynamic Frequency #1.40 GHz
#Graphics Output #eDP 1.4b, DP 1.4a, HDMI 2.1
#Execution Units #24
#Max Resolution (HDMI) #4096 x 2160 @ 60Hz
#Max Resolution (DP) #7680 x 4320 @ 60Hz
#Max Resolution (eDP – Integrated Flat Panel) #5120 x 3200 @ 120Hz
#DirectX* Support #12
#OpenGL* Support #4.5
#Multi-Format Codec Engines #1
#Intel® Quick Sync Video #Yes
#Intel® Clear Video HD Technology #Yes
#of Displays Supported #4
#Device ID #0x4692
#OpenCL* Support #2.1

#Expansion Options

#Direct Media Interface (DMI) Revision #4.0
#Max – of DMI Lanes #8
#Scalability #1S Only
#PCI Express Revision #5.0 and 4.0
#PCI Express Configurations #Up to 1×16+4, 2×8+4
#Max – of PCI Express Lanes #20

#Package Specifications

#Sockets Supported #FCLGA1700
#Max CPU Configuration #1
#Thermal Solution Specification #PCG 2020C
#TJUNCTION #100°C
#Package Size #45.0 mm x 37.5 mm

#Advanced Technologies

#Intel® Gaussian & Neural Accelerator #3.0
#Intel® Thread Director #No
#Intel® Deep Learning Boost (Intel® DL Boost) #Yes
#Intel® Optane™ Memory Supported #Yes
#Intel® Speed Shift Technology #Yes
#Intel® Turbo Boost Max Technology 3.0 #No
#Intel® Turbo Boost Technology #2.0
#Intel® Hyper-Threading Technology #Yes
#Intel® Virtualization Technology (VT-x) #Yes
#Intel® Virtualization Technology for Directed I/O (VT-d) #Yes
#Intel® VT-x with Extended Page Tables (EPT)  #Yes
#Intel® 64 #Yes
#Instruction Set #64-bit
#Instruction Set Extensions #Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
#Idle States #Yes
#Enhanced Intel SpeedStep® Technology #Yes
#Thermal Monitoring Technologies #Yes
#Intel® Volume Management Device (VMD) #Yes

#Security & Reliability

#Intel® AES New Instructions #Yes
#Secure Key #Yes
#Intel® OS Guard #Yes
#Execute Disable Bit #Yes
#Intel® Boot Guard #Yes
#Mode-based Execute Control (MBEC) #Yes
#Intel® Control-Flow Enforcement Technology #Yes
#Warranty #3 Years
Note: *** Features, Prices, and Specifications are subject to change without notice.
