Specification |
#Model |

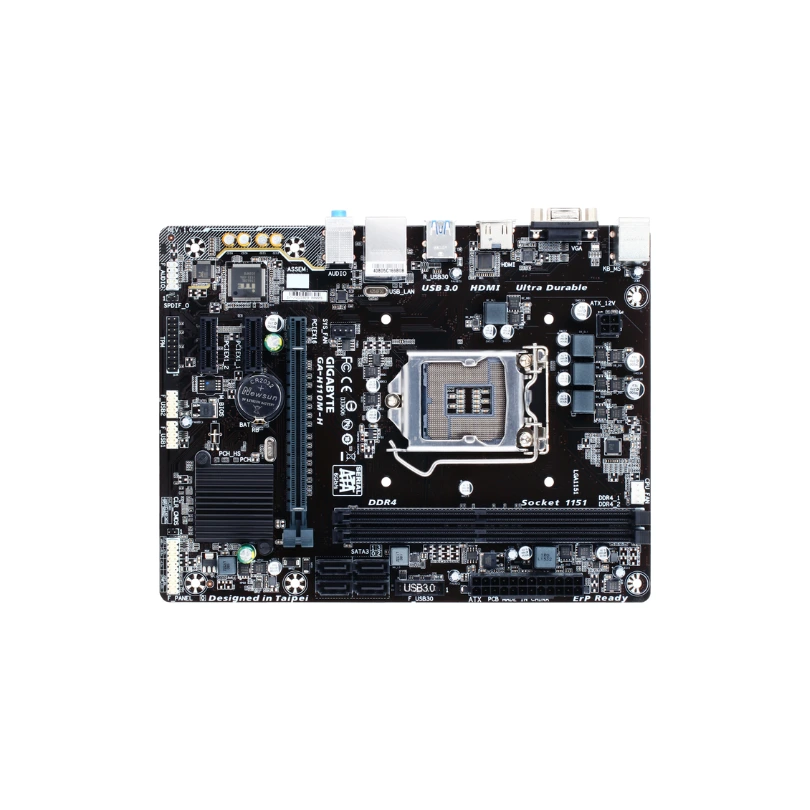

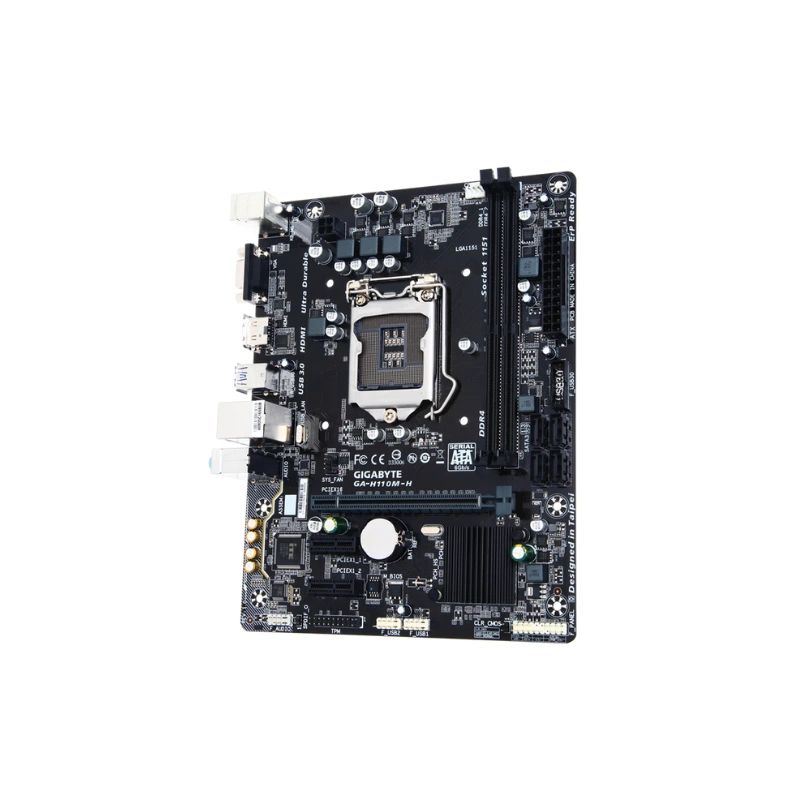

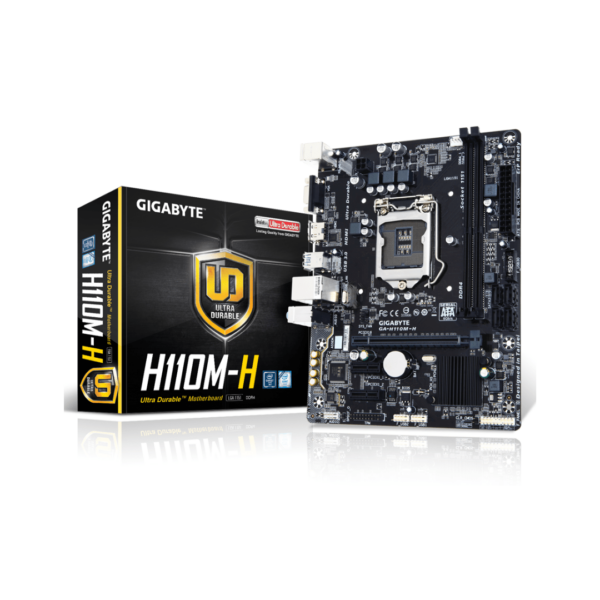

#GA-H110M-H |
#CPU |
#Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
*For 7th Generation Intel® Core™ processors support needs to update the latest BIOS.
#L3 cache varies with CPU
(Please refer “CPU Support List” for more information.) |
#Chipset |
#Intel® H110 Express Chipset |
#Memory |
#2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
#Dual channel memory architecture
#Support for DDR4 2400/2133 MHz memory modules
#Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
#Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer “Memory Support List” for more information.) |
#Onboard Graphics |
#Integrated Graphics Processor – Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.
*Maximum shared memory of 1024 MB |
#Audio |
#Realtek® Audio CODEC
# High-Definition Audio
#2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front-panel audio module and enable the multi-channel audio feature through the audio driver.
#Support for S/PDIF Out |
#Lan |
#Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
#Expansion Slots |
# 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conform to PCI Express 3.0 standard.)
# 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
#Storage Interface |
#Chipset:
1. 4 x SATA 6Gb/s connectors |
#USB |
#Chipset:
1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
#Internal I/O Connectors |
1. 1 x x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header
12. 1 x Clear CMOS jumper |

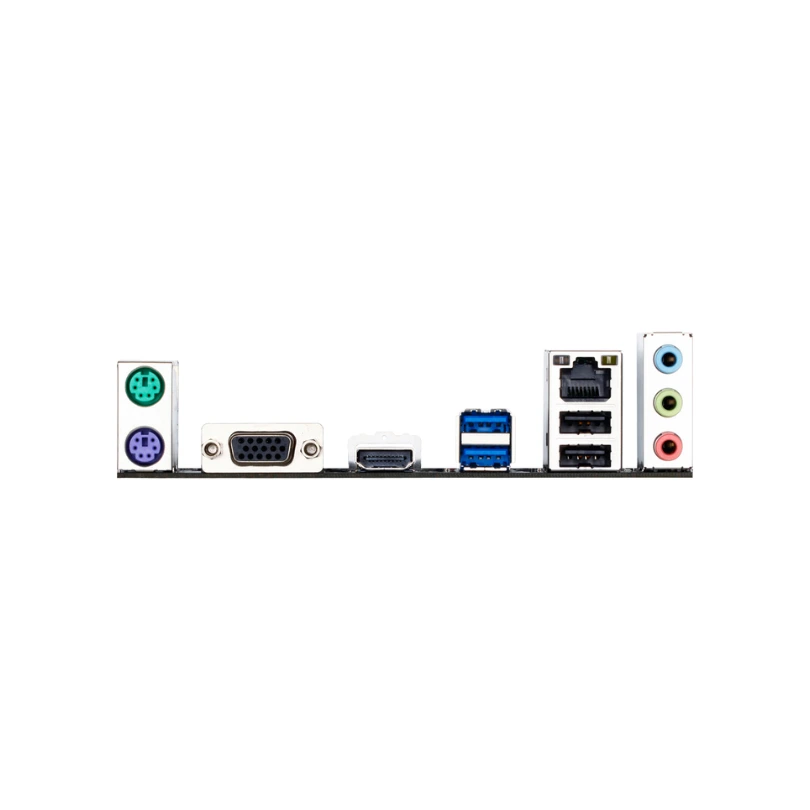

#Back Panel Connectors |
1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In) |
#I/O Controller |
1. iTE I/O Controller Chip |
#H/W Monitoring |
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install. |
#BIOS |
1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
#Unique Features |
1. Support for APP Center
*Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch |
#Bundled Software |
1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software |
#Operating System (OS) |
1. Support for Windows® 10 64-bit (for 7th Generation Intel® Processors)
3. Support for Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
*Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. |
#Form Factor |
#Micro ATX Form Factor; 22.6cm x 17.4cm |
#Warranty |
#3 Years |
Note: *** Features, Prices, and Specifications are subject to change without notice. |
