Specification |
#Model |

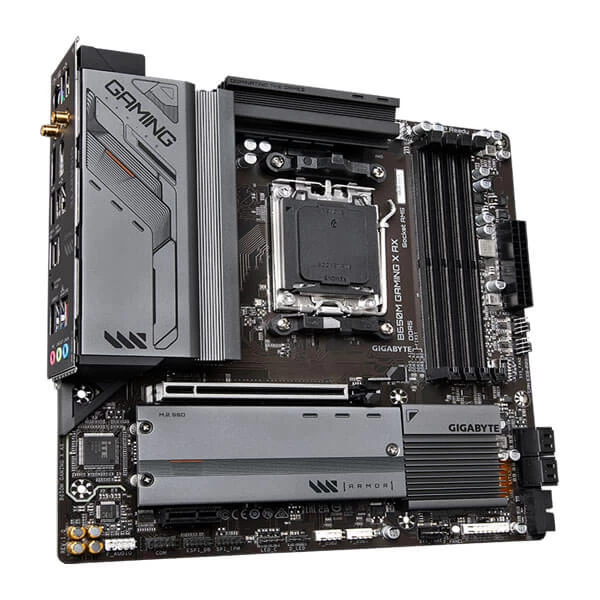

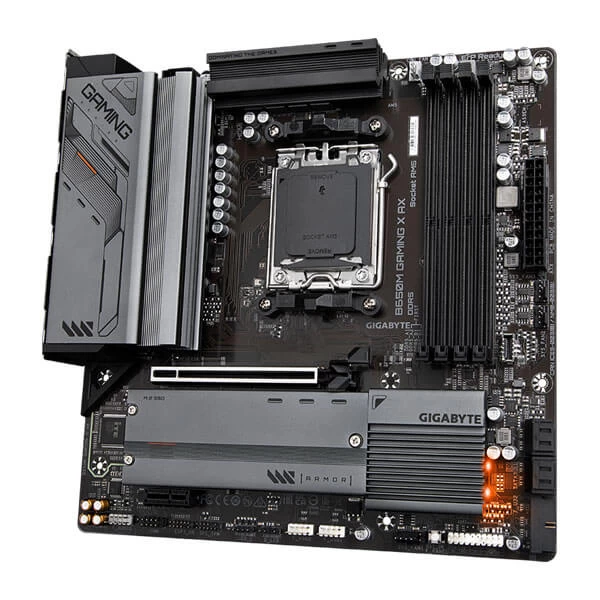

#Gigabyte B650M GAMING X AX Motherboard (Black) |
#CPU |
#AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
(Please refer “CPU Support List” for more information.) |
#Chipset |
#AMD B650 |
#Memory |
#Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules#4Â x DDR5 DIMM sockets supporting up to 256Â GB (64Â GB single DIMM capacity) of system memory
#Dual channel memory architecture
#Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
#Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
#Onboard Graphics |
#Integrated Graphics Processor:
– 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time |
#Audio |
#Realtek Audio CODEC
#High Definition Audio
#2/4/5.1/7.1-channel
 *You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
#Lan |
#Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
#Wireless Communication module |
#AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard
#Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
#Expansion Slots |
#CPU:
– 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
#Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
#Storage Interface |
#1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
#4 Â x SATA 6Gb/s connectors
Â
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
#USB |
#CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|

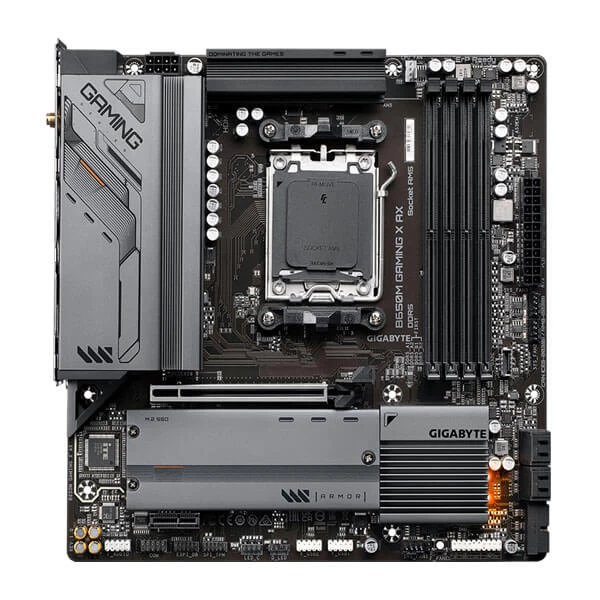

#Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip headers
6. 1 x RGB LED strip headers
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
15. 1 x serial port header
16. 1 x reset button
17. 1 x reset jumper
18. 1 x Clear CMOS jumper |

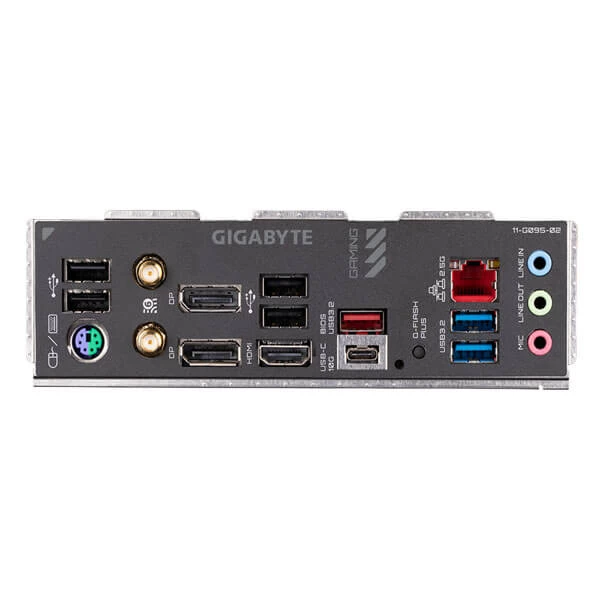

#Back Panel Connectors |
1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x SMA antenna connectors (2T2R)
4. 2 x DisplayPorts
5. 1 x HDMI port
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
8. 1 x Q-Flash Plus button
9. 1 x RJ-45 port
10. 2 x USB 3.2 Gen 1 ports
11. 3 x audio jacks |
#I/O Controller |
1. iTE Â I/O Controller Chip |
#H/W Monitoring |
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  *Whether the fan speed control function is supported will depend on the fan you install. |
#BIOS |
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
#Unique Features |
1. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash
3. Support for Q-Flash Plus |
#Bundled Software |
1. Norton Internet Security (OEM version)
2. LAN bandwidth management software |
#Operating System (OS) |
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit |
#Form Factor |
#Micro ATX Form Factor; 24.4cm x 24.4cm |
#Warranty |
#3 Years |
Note: *** Features, Prices, and Specifications are subject to change without notice. |
