About this item
- Compliance & Design: Adheres to EIA RS-232/485/422 standards with an industrial-grade design utilizing SMT technology for enhanced durability and performance.

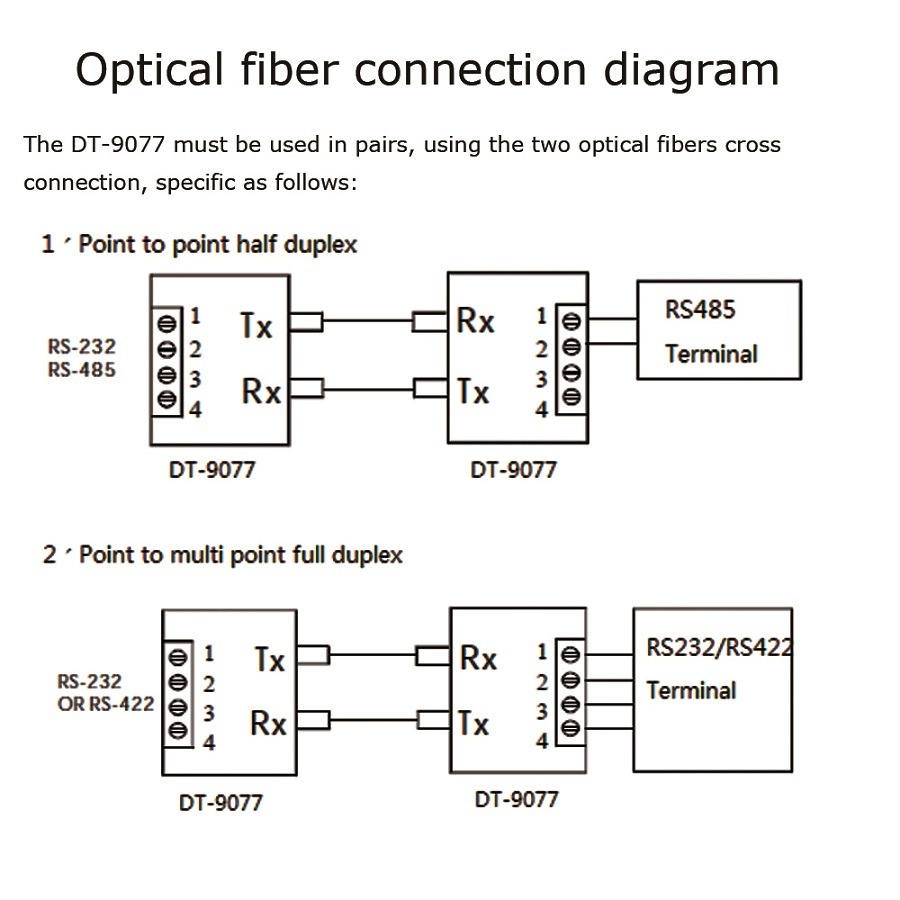

- Transmission & Speed: Enables asynchronous transmission with self-negotiation and automatic detection of serial port rates. The RS422 connector seamlessly converts with fiber optics in point-to-point mode, supporting a maximum communication rate of 120Kbps.
- Power Supply & Versatility: Operates with an external power supply of 9V DC or 220V AC, eliminating the need for serial port power. Available in single or multimode options with FC/SC/ST connectors for flexibility.
- Fiber & Protection: Offers operating wavelengths of 1310nm/1550nm (single mode) and 1310nm, 1550nm. Equipped with 1500W surge protection, 15KV static protection, and additional thunder and lightning safeguards.

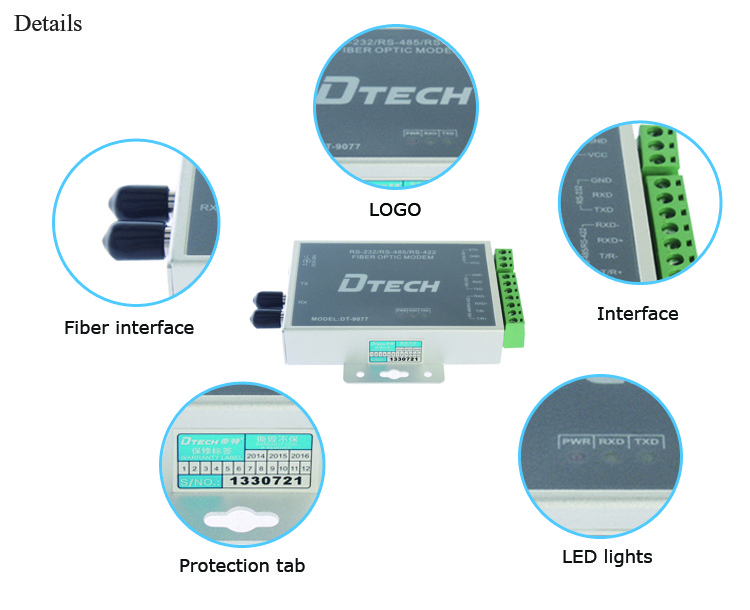

- Distance & Monitoring: Achieves multimode communication up to 2 km and single mode up to 120 km. Features power and video status LED indicators for easy monitoring of system conditions.
- Features: Plug and play with hot-swap functionality and supports centralized management with a 19″ 2U or 16 rack-mount chassis for convenient setup.
