| #Wireless |
| #Standards |
#IEEE 802.11ax 6 GHz,
#IEEE 802.11ax/ac/n/a 5 GHz,
#IEEE 802.11ax/n/b/g 2.4 GHz |
| #WiFi Speeds |
#AXE5400
- 6 GHz: 2402 Mbps (802.11ax)
- 5 GHz: 2402 Mbps (802.11ax)
- 2.4 GHz: 574 Mbps (802.11ax)
|
| #WiFi Range |
#2-3 Bedroom Houses
- 6× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas.
- Beamforming: Concentrates wireless signal strength towards clients to expand the WiFi range.
- High-Power FEM: Improves transmission power to strengthen signal coverage.
|
| #WiFi Capacity |
#Very High
- Tri-Band: Allocate devices to different bands for optimal performance
- OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness: Improves network efficiency by limiting excessive occupation
- DFS: Access an extra band to reduce congestion
- 6 Streams: Connect your devices to more bandwidth
|
| #Working Modes |
#Router Mode
#Access Point Mode |
| #Security |
| #Network Security |
#Security:
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
#HomeShield Security:
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
|
| #Guest Network |
#1× 6 GHz Guest Network,
#1× 5 GHz Guest Network,
#1× 2.4 GHz Guest Network |
| #VPN Server |
#OpenVPN Server
#PPTP VPN Server
#L2TP VPN Server |
| #VPN Client |
#Open VPN Client
#PPTP VPN Client
#L2TP VPN Client |
| #WiFi Encryption |
#WPA,
#WPA2,
#WPA3,
#WPA/WPA2-Enterprise (802.1x) |
| #HARDWARE |
| #Processor |
#1.7 GHz Quad-Core CPU |

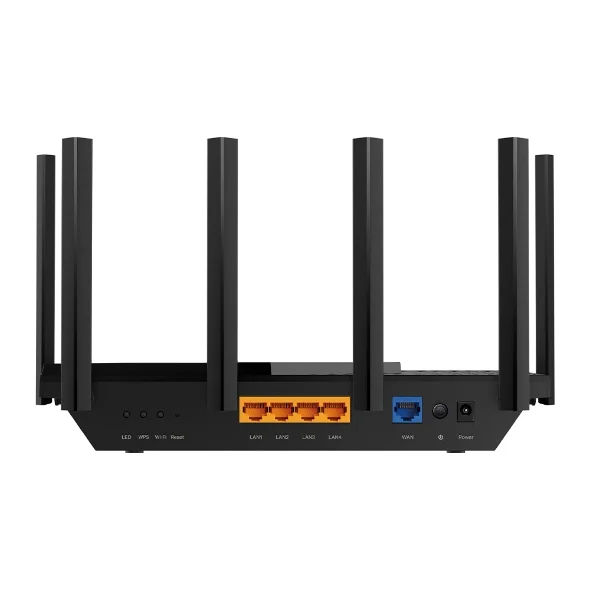

| #Ethernet Ports |
#1× Gigabit WAN Port
#4× Gigabit LAN Ports |
| #USB Support |
#1× USB 3.0 Port
#Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
#Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server |
| #Buttons |
#Wi-Fi On/Off Button
#Power On/Off Button
#LED On/Off Button
#WPS Button
#Reset Button |
| #Power |
#12 V ⎓ 2.5 A |
| #SOFTWARE |
| #Protocols |
#IPv4
#IPv6 |
| #Service Kits |
#HomeShield |
| #OneMesh |
#OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| #Parental Controls |
#Custom Profiles
#Professional Content Filter Library
#Family Time
#Bedtime
#Off Time
#Time Rewards
#Family Online Time Ranking
#Pause the Internet
#Weekly and Monthly Reports |
| #WAN Types |
#Dynamic IP
#Static IP
#PPPoE
#PPTP
#L2TP |
| #Quality of Service |
#QoS by Device |
| #Cloud Service |
#Auto Firmware Upgrade
#TP-Link ID
#DDNS |
| #NAT Forwarding |
#Port Forwarding
#Port Triggering
#DMZ
#UPnP
#Virtual Server |
| #IPTV |
#IGMP Proxy
#IGMP Snooping
#Bridge
#Tag VLAN |
| #DHCP |
#Address Reservation
#DHCP Client List
#Server |
| #DDNS |
#TP-Link
#NO-IP
#DynDNS |
| #Management |
#Tether App
#Webpage |
| #OTHER |
| #System Requirements |
#Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
#browser
#Cable or DSL Modem (if needed)
#Subscription with an internet service provider (for internet access) |
| #Certifications |
#FCC, RoHS |
| #Environment |
#Operating Temperature: 0℃~40℃ (32℉ ~104℉)
#Operating Humidity: 10%~90% non-condensing |
| #TEST DATA |
| #WiFi Transmission Power |
#FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
#CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
| #WiFi Reception Sensitivity |
#2.4 GHz:
- 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
- 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
#5 GHz:
- 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
- 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
- 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
- 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
#6 GHz:
- 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
- 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
- 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
- 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
|
| #PHYSICAL |
| #Dimensions (W×D×H) |
#10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
| #Package Contents |
#Wi-Fi Router Archer AXE75
#Power Adapter
#RJ45 Ethernet Cable
#Quick Installation Guide |
| #Warranty |
#2 Years |
| Note: *** Features, Prices, and Specifications are subject to change without notice. |
