#General Specifications |
#Name |

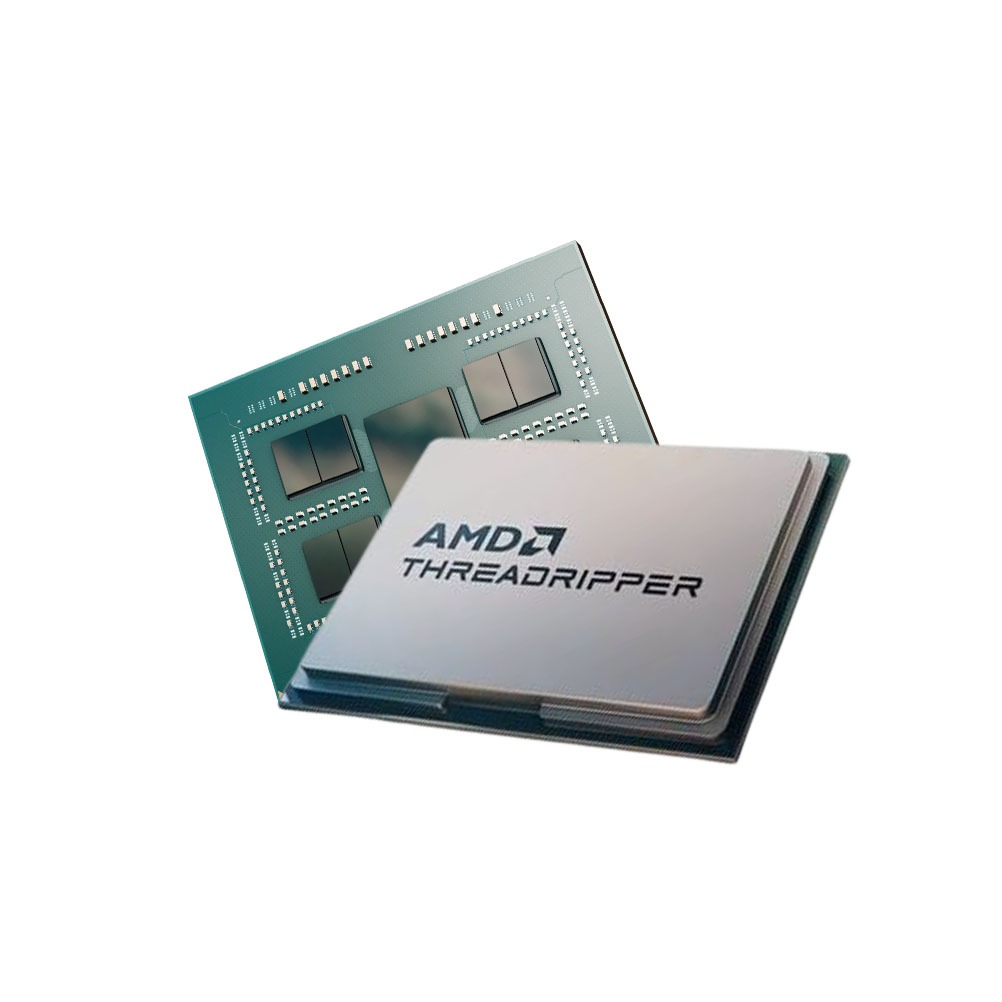

#AMD Ryzen™ Threadripper™ 7980X |
#Family |
#Ryzen Threadripper |
#Series |
#Ryzen Threadripper 7000 Series |
#Form Factor |
#Desktops |
#Market Segment |
#Enthusiast Desktop |
#AMD PRO Technologies |
#No |
#Commercial Use |
#No |
#Regional Availability |
#Global |
#Former Codename |
#Storm Peak |
#Architecture |
#Zen 4 |
#of CPU Cores |
#64 |
#Multithreading (SMT) |
#Yes |
#of Threads |
#128 |
#Max. Boost Clock |
#Up to 5.1 GHz |
#Base Clock |
#3.2 GHz |
#L1 Cache |
#4 MB |
#L2 Cache |
#64 MB |
#L3 Cache |
#256 MB |
#Default TDP |
#350W |
#Processor Technology for CPU Cores |
#TSMC 5nm FinFET |
#Processor Technology for I/O Die |
#TSMC 6nm FinFET |
#CPU Compute Die (CCD) Size |
#71mm² |
#I/O Die (IOD) Size |
#388mm² |
#Package Die Count |
#9 |
#Unlocked for Overclocking |
#Yes |
#AMD EXPO™ Memory Overclocking Technology |
#Yes |
#Precision Boost Overdrive |
#Yes |
#Curve Optimizer Voltage Offsets |
#Yes |
#CPU Socket |
#sTR5 |
#Supporting Chipsets |
#TRX50 |
#CPU Boost Technology |
#Precision Boost 2 |
#Instruction Set |
#x86-64 |
#Supported Extensions |
#AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
#Thermal Solution (PIB) |
#Not Included |
#Max. Operating Temperature (Tjmax) |
#95°C |
#Launch Date |
#10/19/2023 |
#OS Support |
#Windows 11 – 64-Bit Edition
#RHEL x86 64-Bit
#Ubuntu x86 64-Bit |
#Connectivity |
#Native USB 3.2 Gen 2 (10Gbps) Ports |
#4 |
#Native SATA Ports |
#2 |
#PCI Express® Version |
#PCIe® 5.0 |
#Native PCIe® Lanes (Total/Usable) |
#92 , 88 |
#NVMe Support |
#Boot , RAID0 , RAID1 , RAID10 , RAID5 |
#System Memory Type |
#DDR5 |
#Memory Channels |
#4 |
#System Memory Subtype |
#RDIMM |
#System Memory Specification |
#Up to 5200 MT/s |
#ECC Support |
#Yes (Default Enabled) |
#Graphics Capabilities |
#Graphics Model |
#Discrete Graphics Card Required |
#Security, Virtualization and Manageability |
#DASH support |
#Yes |
#AMD Memory Guard |
#Yes |
#AMD Secure Processor Support |
#Yes |
#Windows Secure Boot Support |
#Yes |
#UEFI Secure Boot Support |
#Yes |
#Windows Device Guard Support |
#Yes |
#Guest Mode Execution (GMET) Trap Support |
#Yes |
#Virtualization-Based Security (VBS) Support |
#Yes |
#Windows Secured-Core PC Support |
#Yes |
#Firmware TPM |
#Yes |
#AMD-V (SVM) Support |
#Yes |
#AMD-V Nested Paging (RVI) Support |
#Yes |
#AMD AVIC (Interrupt Virtualization) Support |
#Yes |
#AMD-Vi (I/O MMU Virtualization) Support |
#Yes |
#Second Level Address Translation (SLAT) Supported |
#Yes |
#Advanced Encryption Standard New Instructions (AES-NI) |
#Yes |
#AMD Enhanced Virus Protection (NX bit) |
#Yes |
#FIPS Certification |
#In Review |
#Warranty |
#3 Years |
Note: *** Features, Prices, and Specifications are subject to change without notice. |
