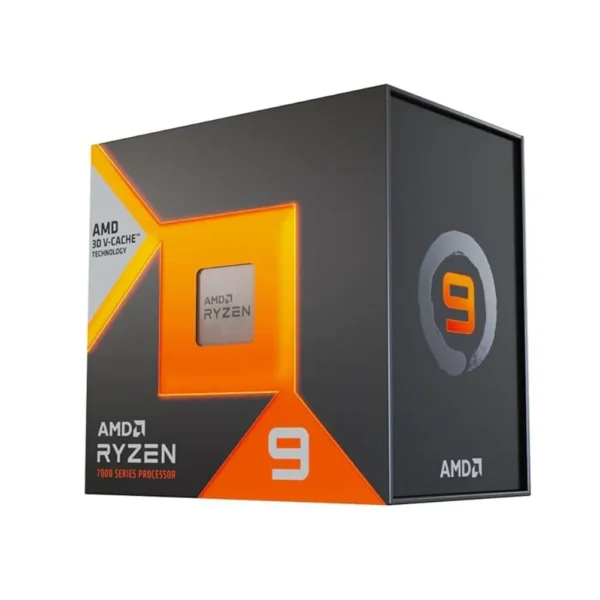

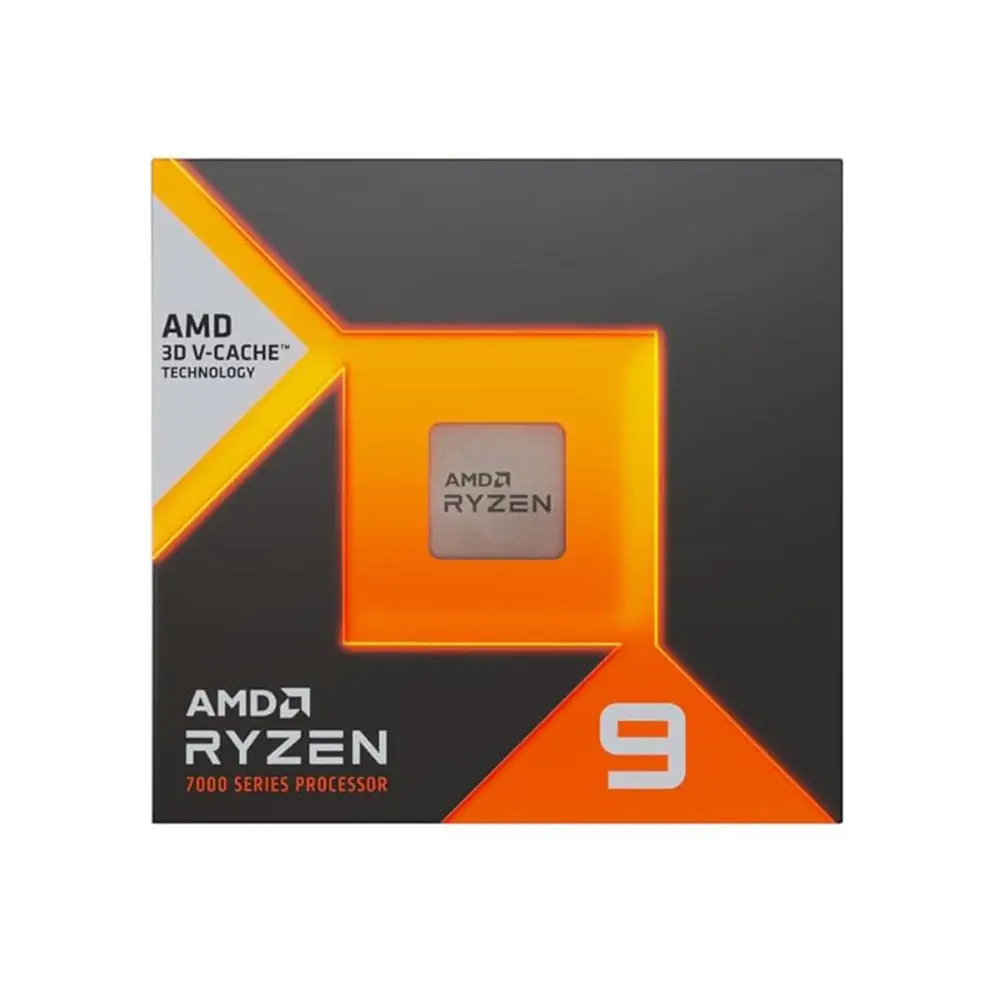

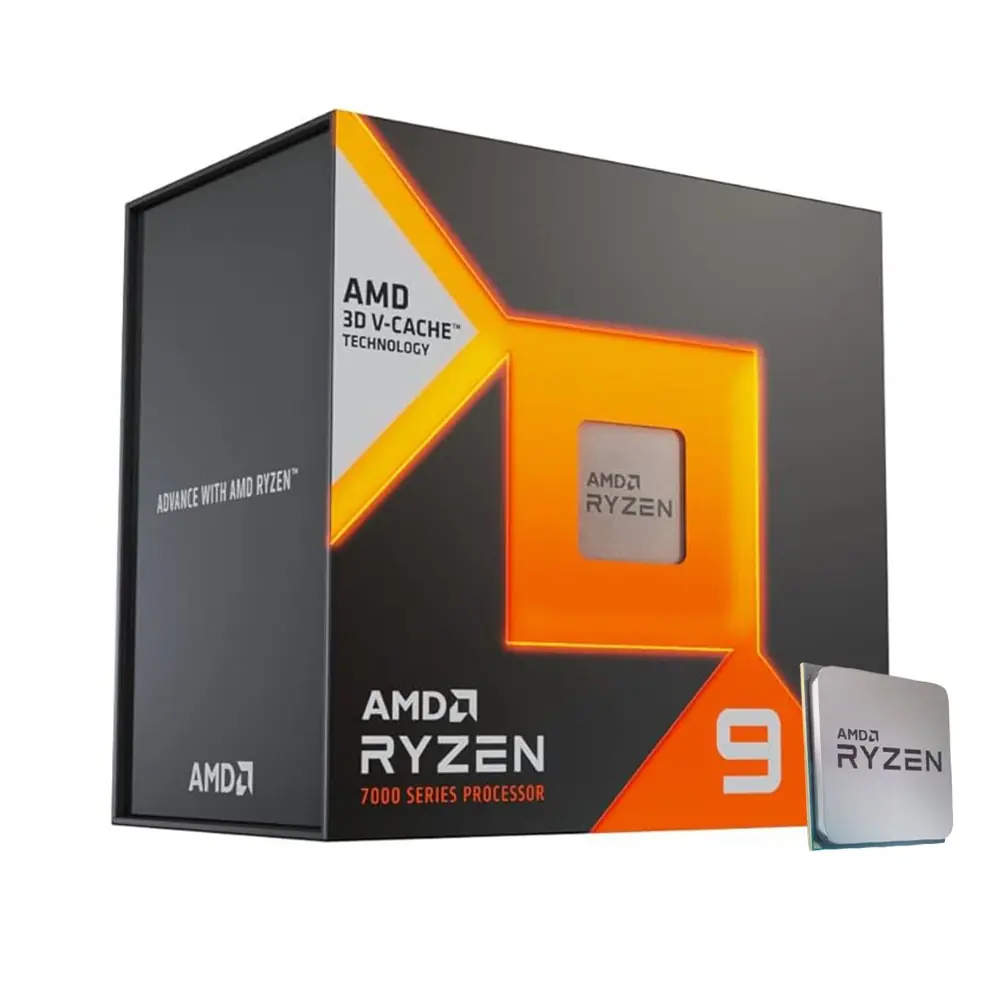

AMD Ryzen 9 7900X3D Processor With Radeon Graphics


AMD Ryzen 9 7900X3D Processor

  • Warranty: 3 Years
  • Socket: AM5
  • Integrated Graphics: Yes, AMD Radeon Graphics
  • Cooling: Includes stock fan
  • Memory Support: DDR5 RAM

Note: *** Features, Prices, and Specifications are subject to change without notice.

Compare

Highlights



Brand AMD
Model Ryzen 9 7900X3D
Cores 12 Cores
Threads 24 Threads
Base Clock 4.40 GHz
Max. Boost Clock 5.60 GHz



#General Specifications
#Model #RYZEN-9-7900X3D
#Platform #Desktop
#Product Family #AMD Ryzen™ Processors
#Market Segment #Enthusiast Desktop
#Product Line #AMD Ryzen™ 9 Processors
#AMD PRO Technologies #No
#Consumer Use #Yes
#Regional Availability #Global
#Former Codename #Raphael AM5
#Architecture #Zen 4
#Multithreading (SMT) #Yes
# of CPU Cores #12
# of Threads #24
#Max. Boost Clock #Up to 5.6GHz
#Base Clock #4.4GHz
#L1 Cache #768KB
#L2 Cache #12MB
#L3 Cache #128MB
#Default TDP #120W
#Processor Technology for CPU Cores #TSMC 5nm FinFET
#Processor Technology for I/O Die #TSMC 6nm FinFET
#CPU Compute Die (CCD) Size #71mm²
#I/O Die (IOD) Size #122mm²
#Package Die Count #3
#OS Support #Windows 11 – 64-Bit Edition

#Windows 10 – 64-Bit Edition

#RHEL x86 64-Bit

#Ubuntu x86 64-Bit

#Operating System (OS) support will vary by manufacturer

#AMD EXPO™ Memory Overclocking Technology #Yes
#Precision Boost Overdrive #Yes
#Curve Optimizer Voltage Offsets #Yes
#AMD Ryzen™ Master Support #Yes
#CPU Socket #Yes
#Supporting Chipsets #A620

#X670E

#X670

#B650E

#B650

#CPU Boost Technology #Precision Boost 2
#Instruction Set #x86-64
#Supported Extensions #AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
#Thermal Solution (PIB) #Not Included
#Max. Operating Temperature (Tjmax) #89°C
#Connectivity
#USB Type-C® Support #Yes
#Native USB 3.2 Gen 2 (10Gbps) Ports #4
#Native USB 3.2 Gen 1 (5Gbps) Ports #0
#Native USB 2.0 (480Mbps) Ports #1
#Native SATA Ports #0
#PCI Express® Version #PCIe® 5.0
#Native PCIe® Lanes (Total/Usable) #28/24
#Additional Usable PCIe Lanes from Motherboard #AMD X670E 12x Gen4

#AMD X670   12x Gen4

#AMD B650E  8x Gen4

#AMD B650    8x Gen4

#NVMe Support #Boot, RAID0, RAID1, RAID10
#System Memory Type #DDR5
#Memory Channels #2
#Max. Memory #128GB
#System Memory Subtype #UDIMM
#Max Memory Speed #2x1R DDR5-5200

#2x2R DDR5-5200

#4x1R DDR5-3600

#4x2R DDR5-3600

#ECC Support #Yes (Requires mobo support)
#Graphics Capabilities
#Integrated Graphics #Yes
#Graphics Model #AMD Radeon™ Graphics
#Graphics Core Count #2
#Graphics Frequency #2200 MHz
#USB Type-C® DisplayPort™ Alternate Mode #Yes
#Key Features
#Supported Technologies #AMD EXPO™ Technology

#AMD Ryzen™ Technologies

#Warranty #3 Years
Note: *** Features, Prices, and Specifications are subject to change without notice.
