| Specification |
| #Model |

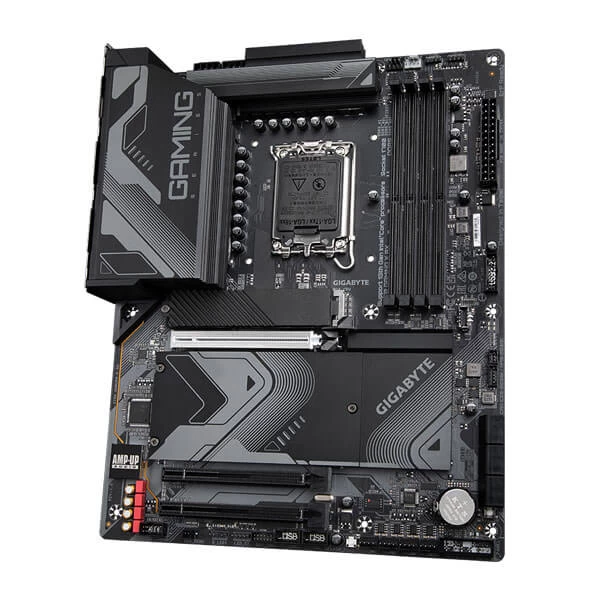

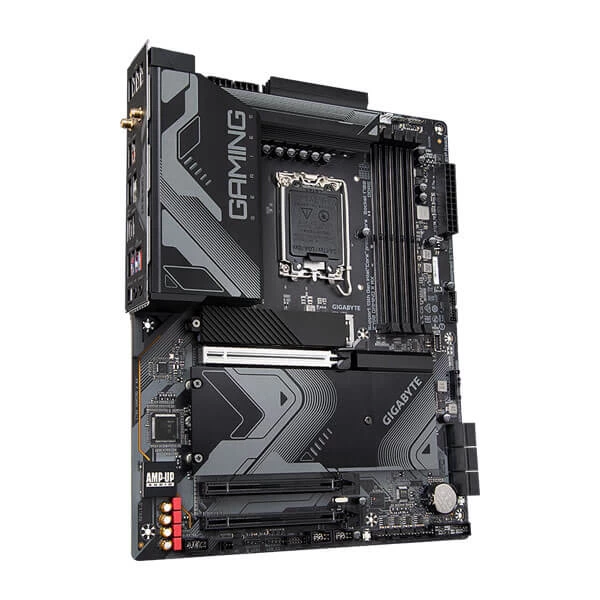

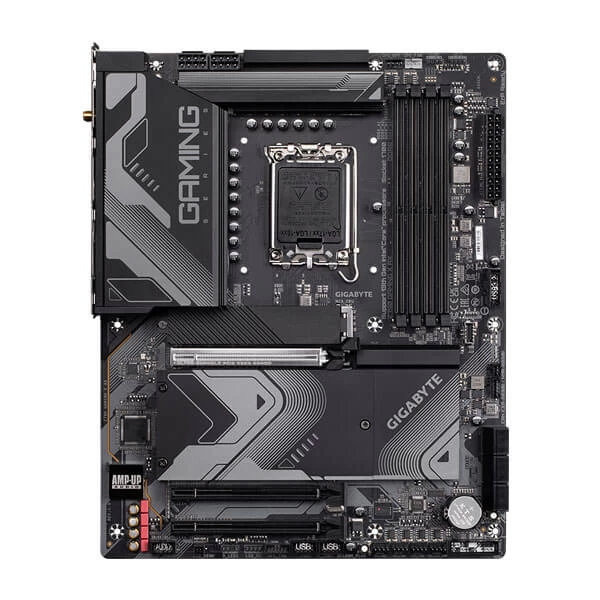

#Z790 Gaming X |
| #CPU |
#LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
#L3 cache varies with CPU
(Please refer “CPU Support List” for more information.) |
| #Chipset |
#Intel Z790 Express Chipset |
| #Memory |
#Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
#4Â x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
#Dual channel memory architecture
#Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
#Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
#Support for Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| #Onboard Graphics |
#Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3
*(Graphics specifications may vary depending on CPU support.) |
| #Audio |
#Realtek Audio CODEC
#High Definition Audio
#2/4/5.1/7.1-channel
 *You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
#Support for S/PDIF Out |
| #Lan |
#Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| #Wireless Communication module—————– |
#Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
#AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard
#Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
| #Expansion Slots |
#CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
#Chipset:
- 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
|
| #Storage Interface |
#CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
#Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 6 x SATA 6Gb/s connectors
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
#RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
#RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| #USB |
#Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
#Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
| #Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1Â x system fan/water cooling pump header
7. 2Â x addressable LED strip headers
8. 2Â x RGB LED strip headers
9. 4Â x M.2 Socket 3 connectors
10. 6Â x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1Â x front panel header
14. 1 x Clear CMOS jumper
15. 2 x USB Type-C® header, with USB 3.2 Gen 2×2 support
16. 2 x USB 3.2 Gen 1 header
17. 1 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x Q-Flash Plus button
20. 1 x reset button
21. 1 x reset jumper |

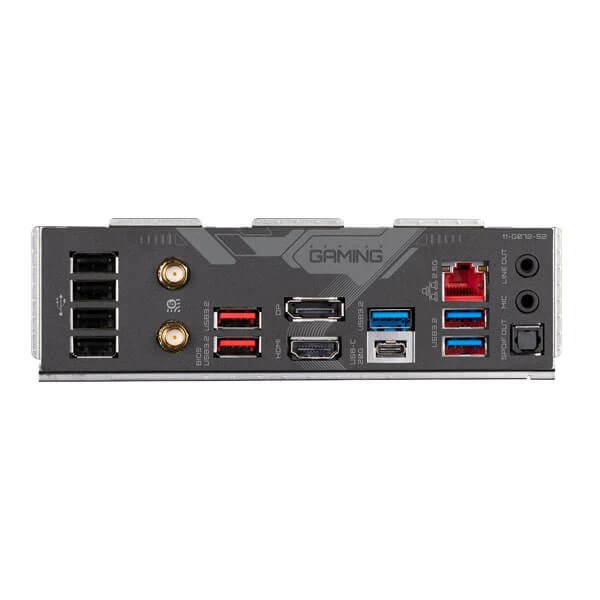

| #Back Panel Connectors |
1. 4 x USB 2.0/1.1 ports
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 1 x DisplayPort
4. 1 x HDMI port
5. 3 x USB 3.2 Gen 1 ports
6. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks |
| #I/O Controller |
1. iTE Â I/O Controller Chip |
| #H/W Monitoring |
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Water cooling flow rate detection
6. Fan speed control
  *Whether the fan speed control function is supported will depend on the fan you install. |
| #BIOS |
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| #Unique Features |
1. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
4. Support for Smart Backup |
| #Bundled Software |
1. Norton Internet Security (OEM version)
2. LAN bandwidth management software |
| #Operating System (OS) |
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit |
| #Form Factor |
#ATX Form Factor; 30.5cm x 24.4cm |
| #Warranty |
#3 Years |
| Note: *** Features, Prices, and Specifications are subject to change without notice. |
