#Essentials
|
|
| #Product Collection |
|

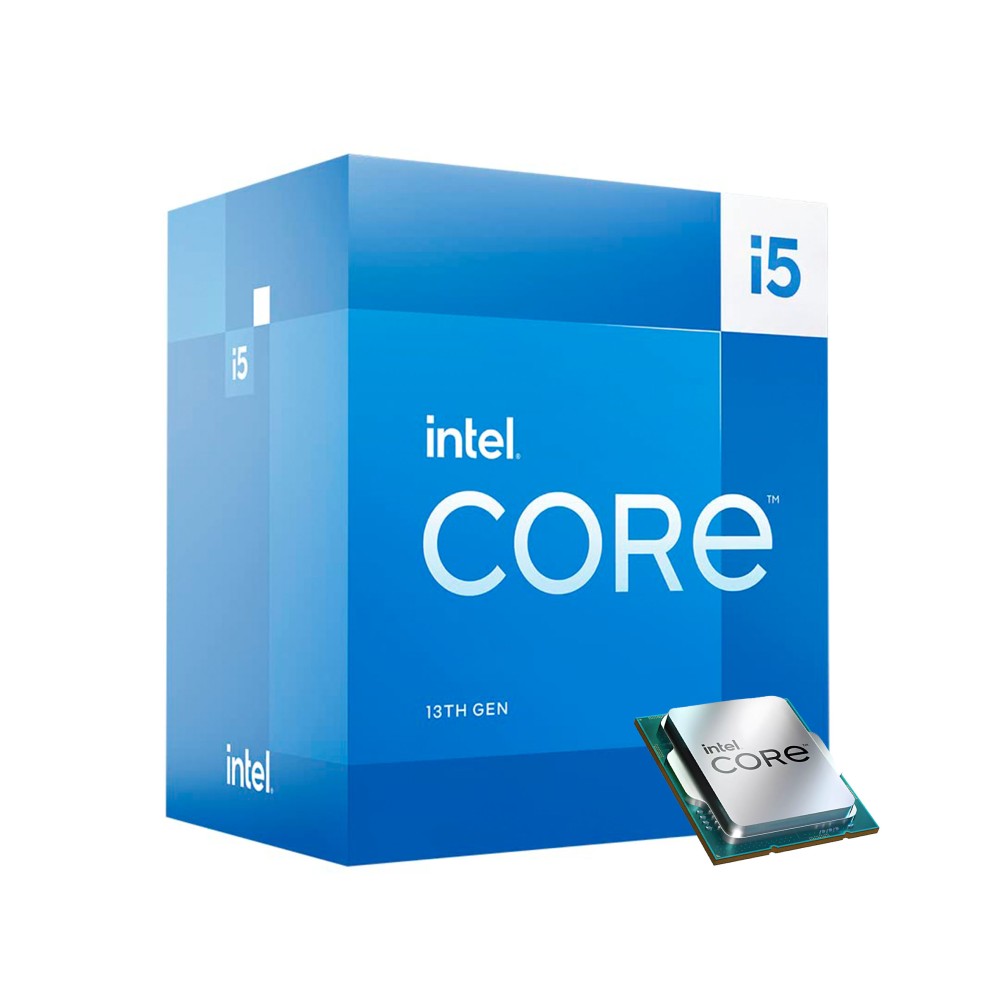

#13th Generation Intel® Core™ i5 Processor |
| #Code Name |
|
#Products formerly Raptor Lake |
| #Vertical Segment |
|
#Desktop |
| #Processor Number |
|
#i5-13500 |
| #Lithography |
|
#Intel 7 |
| #Use Conditions |
|
#PC/Client/Tablet |
#CPU Specifications
|
|
| #Total Cores |
|
#14 |
| #of Performance-cores |
|
#6 |
| #of Efficient-cores |
|
#8 |
| #Total Threads |
|
#20 |
| #Max Turbo Frequency |
|
#4.80 GHz |
| #Performance-core Max Turbo Frequency |
|
#4.80 GHz |
| #Efficient-core Max Turbo Frequency |
|
#3.50 GHz |
| #Performance-core Base Frequency |
|
#2.50 GHz |
| #Efficient-core Base Frequency |
|
#1.80 GHz |
| #Cache |
|
#24 MB Intel® Smart Cache |
| #Total L2 Cache |
|
#11.5 MB |
| #Processor Base Power |
|
#65 W |
| #Maximum Turbo Power |
|
#154 W |
#Memory Specifications
|
|
| #Max Memory Size (dependent on memory type) |
|
#192 GB |
| #Memory Types |
|
#Up to DDR5 4800 MT/s & Up to DDR4 3200 MT/s |
| #Max – of Memory Channels |
|
#2 |
| #Max Memory Bandwidth |
|
#76.8 GB/s |
| #ECC Memory Supported |
|
#Yes |
#Processor Graphics
|
|
| #Processor Graphics |
|
#Intel® UHD Graphics 770 |
| #Graphics Max Dynamic Frequency |
|
#1.55 GHz |
| #Graphics Base Frequency |
|
#300 MHz |
| #Graphics Output |
|
#eDP 1.4b, DP 1.4a, HDMI 2.1 |
| #Execution Units |
|
#32 |
| #Max Resolution (HDMI) |
|
#4096 x 2160 @ 60Hz |
| #Max Resolution (DP) |
|
#7680 x 4320 @ 60Hz |
| #Max Resolution (eDP – Integrated Flat Panel) |
|
#5120 x 3200 @ 120Hz |
| #DirectX* Support |
|
#12 |
| #OpenGL* Support |
|
#4.5 |
| #OpenCL* Support |
|
#3.0 |
| #Multi-Format Codec Engines |
|
#2 |
| #Intel® Quick Sync Video |
|
#Yes |
| #Intel® Clear Video HD Technology |
|
#Yes |
| #of Displays Supported |
|
#4 |
| #Device ID |
|
#0x4680 |
#Expansion Options
|
|
| #Direct Media Interface (DMI) Revision |
|
#4.0 |
| #Max – of DMI Lanes |
|
#8 |
| #Scalability |
|
#1S Only |
| #PCI Express Revision |
|
#5.0 and 4.0 |
| #PCI Express Configurations |
|
#Up to 1×16+4, 2×8+4 |
| #Max – of PCI Express Lanes |
|
#20 |
#Package Specifications
|
|
| #Sockets Supported |
|
#FCLGA1700 |
| #Max CPU Configuration |
|
#1 |
| #Thermal Solution Specification |
|
#PCG 2020C |
| #TJUNCTION |
|
#100°C |
| #Package Size |
|
#45.0 mm x 37.5 mm |
#Advanced Technologies
|
|
| #Intel® Gaussian & Neural Accelerator |
|
#3.0 |
| #Intel® Thread Director |
|
#Yes |
| #Intel® Deep Learning Boost (Intel® DL Boost) |
|
#Yes |
| #Intel® Speed Shift Technology |
|
#Yes |
| #Intel® Turbo Boost Max Technology 3.0 |
|
#No |
| #Intel® Turbo Boost Technology |
|
#2.0 |
| #Intel® Hyper-Threading Technology |
|
#Yes |
| #Intel® 64 |
|
#Yes |
| #Instruction Set |
|
#64-bit |
| #Instruction Set Extensions |
|
#Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| #Idle States |
|
#Yes |
| #Enhanced Intel SpeedStep® Technology |
|
#Yes |
| #Thermal Monitoring Technologies |
|
#Yes |
| #Intel® Volume Management Device (VMD) |
|
#Yes |
#Security & Reliability
|
|
| #Intel® Standard Manageability (ISM) |
|
#Yes |
| #Intel® Control-Flow Enforcement Technology |
|
#Yes |
| #Intel® AES New Instructions |
|
#Yes |
| #Secure Key |
|
#Yes |
| #Intel® OS Guard |
|
#Yes |
| #Execute Disable Bit |
|
#Yes |
| #Intel® Boot Guard |
|
#Yes |
| #Mode-based Execute Control (MBEC) |
|
#Yes |
| #Intel® Virtualization Technology (VT-x) |
|
#Yes |
| #Intel® Virtualization Technology for Directed I/O (VT-d) |
|
#Yes |
| #Intel® VT-x with Extended Page Tables (EPT) |
|
#Yes |
| #Warranty |
|
#3 Years |
|
Note: *** Features, Prices, and Specifications are subject to change without notice. |
